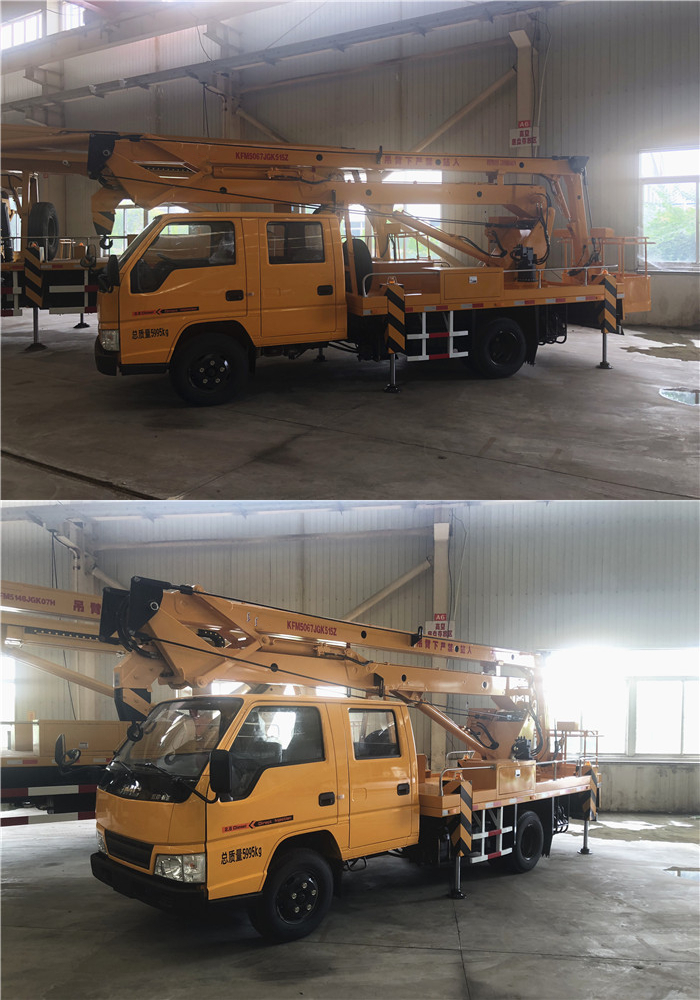

28M Composite Boom Aerial Working Platform Truck 3 Section Articulated Boom and 1 Section Telescopic Boom
A,Working Condition for aerial working platform truck
1,Altitude: 0-1000m
2,Temperature: -25℃--+45℃, environmental relative humidity ≤90%
3,Allowed working condition: solid, stable land, the vehicle should be horizontal
4,Wind force: ≤6 degree (wind speed ≤12.5m/s )
B,Working Range for aerial working platform truck
KFM5148JGK07H Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
C,Main Parameters for aerial working platform truck
| Bulletin No. | KFM5148JGK07H |
| Type | GKHZ-28E |
| External dimensions(mm) | 10150×2500×3650 |
| Structure type | Three-section articulated boom & One-section telescopic boom |
| Working Cage | Internal size(mm) | 1208×605×1100 |
| Rated loading(kg) | 200 (or 2 persons ) |
| Max. Working height(mm) | 28000 |
| Max. Height from ground(mm) | 26300 |
| Max. Working radius(mm) | 12000 |
| Working radius when doing the highest height(mm) | 5500 |
| Working Boom | Max. Raising angle of lower boom(º) | 80 |
| Max. Raising angle of upper boom(º) | 70 |
| Max. Raising angle of jib(º) | 90 |
| Boom rack rotation angle(º) | 360 |
| Max. Raising of extending boom(mm) | 5100 |
| Outrigger | Vertical span(mm) | 4860 |
| Horizontal span(mm) | 4800 |
| Traveling of vertical outrigger (mm) | 650 |
| Adjustment | Single adjustable |
| Lifting | Rated lifting weight(kg) | / |
| Rated lifting height(mm) | / |
D,Chassis Introduction
| Traveling Performance Parameters | Chassis model | DONGFONG DFL1140B |
| Persons | 3 |
| Axle base (mm) | 5000 |
| Wheel base (front/rear)(mm) | 1880/1800 |
| Driving mode | 4×2 |
| Front suspension(mm) | 1430 |
| Rear suspension(mm) | 2050 |
| Approaching angle(º) | 20 |
| Departure angle(º) | 13 |
| Min. Turning diameter(mm) | 18000 |
| Min. Ground clearance(mm) | 250 |
| Engine | Engine model | ISDe185 30 |
| Rated power(kw/r/min) | 136/2500 |
| Torque(N,m/r/min) | 700/1200-1700 |
| Max. Speed(km/h) | 90 |
| Specification of the tire | 10.00-20,10.00R20,9.00-20,9.00R20 |
| The whole weight(kg) | 13805 |
| Max. Weight with whole loading(kg) | 14000 |
E,Equipments Introduction of aerial working platform truck
1. DONGFONG DFL1140B
2. Working boom assembly
3. Rotation structure assembly
4. Body transformation assembly
5. Extending outrigger
6. Spare type & tool box
7. Hydraulic system assembly
8. Electric system assembly
9. Safety control system
10. Working cage assembly
11. Safety belt
12. Safety lift & Moving guard bar
13. Balance slid rod device
14. Maintenance bag & tools
15. Safety warning & Light
16. Air- conditioning
F,Vehicle Information for aerial working platform truck
- Manual Instruction
- Operation manual of chassis
- Guarantee of chassis
- Certification of quality of the vehicle
- Maintenance Manual (Operation instruction)
- Operating safety certification
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q:What's your main products?
A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
