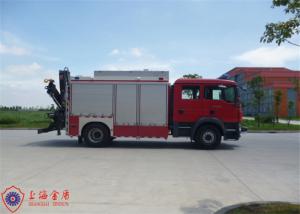

213kw Six Seats Emergency Rescue Vehicle Equipped Rescue Crane on Rear

Name: 213kw Six Seats Emergency Rescue Vehicle Equipped Rescue Crane on Rear
Brand: CIMC Jindun
Price: 1 USD

China 213kw Six Seats Emergency Rescue Vehicle Equipped Rescue Crane on Rear wholesale

Brand Name : CIMC Jindun

Model Number : JDX5130TXFJY100

Certification : ISO9001,CCC

Place of Origin : shanghai China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 units/year

Delivery Time : 90 days after sign contract

Packaging Details : Exporting standard package or customized packing

Chassis brand : Mercedes-Benz

Gross weight : 13066kg

Max. speed : 96km/h

equipment no. : 100pcs

Max. power : 213kw

seat : 2+4

Wheelbase : 4425mm

Bumper winch : Equipped

Lifting crane : Equipped

Product name : 213kw emergency rescue vehicle

Contact Now

213kw Six Seats Emergency Rescue Vehicle Equipped Rescue Crane on Rear

Vehicle

Dimension (L×W×H)	8655×2500×3500mm
Gross weight	13066kg
Complete vehicle shipping mass	12616kg
Rescue equipment quantity	100pcs
Seat (inc. driver)	2+4

Chassis

Manufacturer	MAN
Model	TGM 18.290
Drive type	4x2
Cab	Crew cab
Wheelbase	4425mm
Max. total mass	18000kg
Max. speed	96km/h
Min. turning diameter	<15.6m
Engine type	In-line six-cylinder, inter-cooling, high pressure common rail, electronic control
Model	D0836LFL30
Max. power	213kw
Max. torque	1150N.M
Emission standard	China IV
Gearbox model	ZF 9S-1310 OD Manual

Electrical system

The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue), on both sides of the vehicle is provided with LED side lights installed below the rear side marker lamps, after the installation of the contour light.

Painting

Red paint: cab, body (shutter doors, except decorative strip)

White paint: rear bumpers (steel parts), fenders, roof railing

Onboard document

Vehicle operation and maintenance manual
Chassis operating manual
Chassis operation and maintenance manual
Chassis quality warranty card
Chassis certificate, vehicle certificate, 3C logo
Engine code copy
Chassis code copy
Onboard equipment list
Follow-up service card
Hand-over list

213kw Six Seats Emergency Rescue Vehicle Equipped Rescue Crane on Rear
